Syringes
Prime Syringes

TriContinent Prime Series Syringes can be summarized in two words: quality and customization. For over four decades, we have been producing syringes of the finest quality, specially designed for use with syringe pumps. Each of our Prime Series Syringes is made from premium borosilicate glass, and has precision bore diameters of +/- 0.0002". Our syringe seal materials include high-quality PTFE, UHMWPE, or custom UHMWPE blends. Whether your reagents are simple aqueous solutions, or extremely crystalline and abrasive, we offer the ideal seal solution to suit your application.

Contact Us
Request a Quote
Share

Description

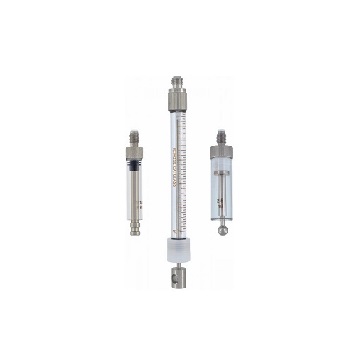

Prime Replacement Syringes, 3 cm and 6 cm

Our Prime Replacement Syringes are compatible with TriContinent C-Series syringe pumps, as well as other industry standard 3 cm and 6 cm stroke syringe pumps.

Features & Benefits:

  • Designed for volumes of 50 µL to 25 mL
  • Luer or ¼-28 threaded end caps
  • Broad variety of syringe interfaces
  • Seals available in PTFE, UHMWPE, or custom UHMWPE blends
  • Customized designs and materials to suit application requirements

AccuPump2 and BasePump Syringes

AccuPump 2 and BasePump syringes are designed specifically for these OEM pumps to ensure long life and optimum performance.

Liquid-handling products and instruments certificates rohs

Specifications

3cm Syringes and Syringes Specifications



MODEL
3cm Syringes
Syringes
(fits TriContinent C-Series Pumps Tecan's Cavro XP3000 and XCalibur)
(fits TriContinent BasePump models)
AVAILABLE VOLUMES
50 μL, 100 μL, 250 μL, 500 μL, 1 mL, 2.5 mL,  5 mL, 12.5 mL*  (additional volumes upon request)
50 μL, 250 μL, 500 μL, 2 mL, 5 mL, 10 mL  (additional volumes upon request)
FITTING INTERFACE
1/4' - 28
Diluent Syringe - Luer Fittings
Single Port Syringe - 1/4 - 28 Female Port
Dual Port Syringe - Male Luer Fittings
STROKE LENGTH
3 cm
FLUID CONTACT MATERIALS
UHMWPE Seal, Borosilicate Glass
PTFE seal, Borosilicate Glass, Polypropylene
PTFE seal, Borosilicate Glass

* Compatible only with the TriContinent C3000 Model # 8657-15 and C24000 Model # 8657-11.

Ordering Information

Please contact your TriContinent Sales Representative for current pricing.

3cm Syringes (fits TriContinent C-Series Pumps, Tecan's Cavro™ XP3000 and XCalibur)



Catalog #
Description
10470
50 μL UHMWPE
10471
100 μL UHMWPE
10472
250 μL UHMWPE
10473
500 μL UHMWPE
10474
1 mL UHMWPE
10475
2.5 mL UHMWPE
10476
5 mL UHMWPE
10480
50 μL PTFE
10481
100 μL PTFE
10482
250 μL PTFE
10483
500 μL PTFE
10484
1 mL PTFE
10485
2.5 mL PTFE
10486
5 mL PTFE
10488*
12.5 mL PTFE

* Compatible only with the TriContinent C3000 Model # 8657-15 and C24000 Model # 8657-11

MC6000 Syringes*



Catalog #
Description
10480
50 μL PTFE
10481
100 μL PTFE
10482
250 μL PTFE
10483
500 μL PTFE
10484
1 mL PTFE
10485
2.5 mL PTFE
10486
5 mL PTFE

* Long-life UHMWPE seals available upon request

Syringes (fits TriContinent Basepump Models)

Syringes (fits TriContinent Basepump Models)



Catalog #
Description
905
50 μL  PTFE Dual Port Sample
904
250 μL  PTFE Dual Port Sample
903
500 μL PTFE Diluent
902
2 mL PTFE Diluent
901
5 mL PTFE Diluent
900
10 mL PTFE Diluent
893
250 μL PTFE Single Port Sample
894
500 μL PTFE Single Port Sample
890
2 mL PTFE Single Port Sample
895
5 mL PTFE Single Port Sample
896
10 mL PTFE Single Port Sample

Downloads

prime-series-syringes-datasheet

Prime Series Syringes Datasheet
