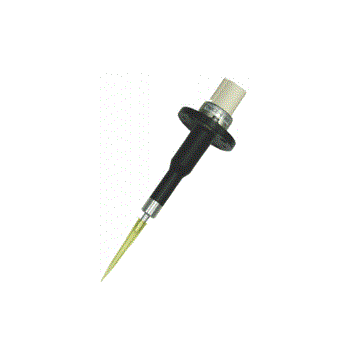

Air-Z Legacy
Air Displacement Pumps

Driver Recommendations

• Pump should typically be driven wtih a 24 VDC bipolar chopper drive, 1/2 step, at rated current. Bigher voltage may be require at higher step rates.

Fluid Contact Materials (in case of accidental fluid aspiration)

• Acetal, PTFE, Silicone Lubricant, Buna N, Neoprene, Borosilicate Glass and Stainless Steel

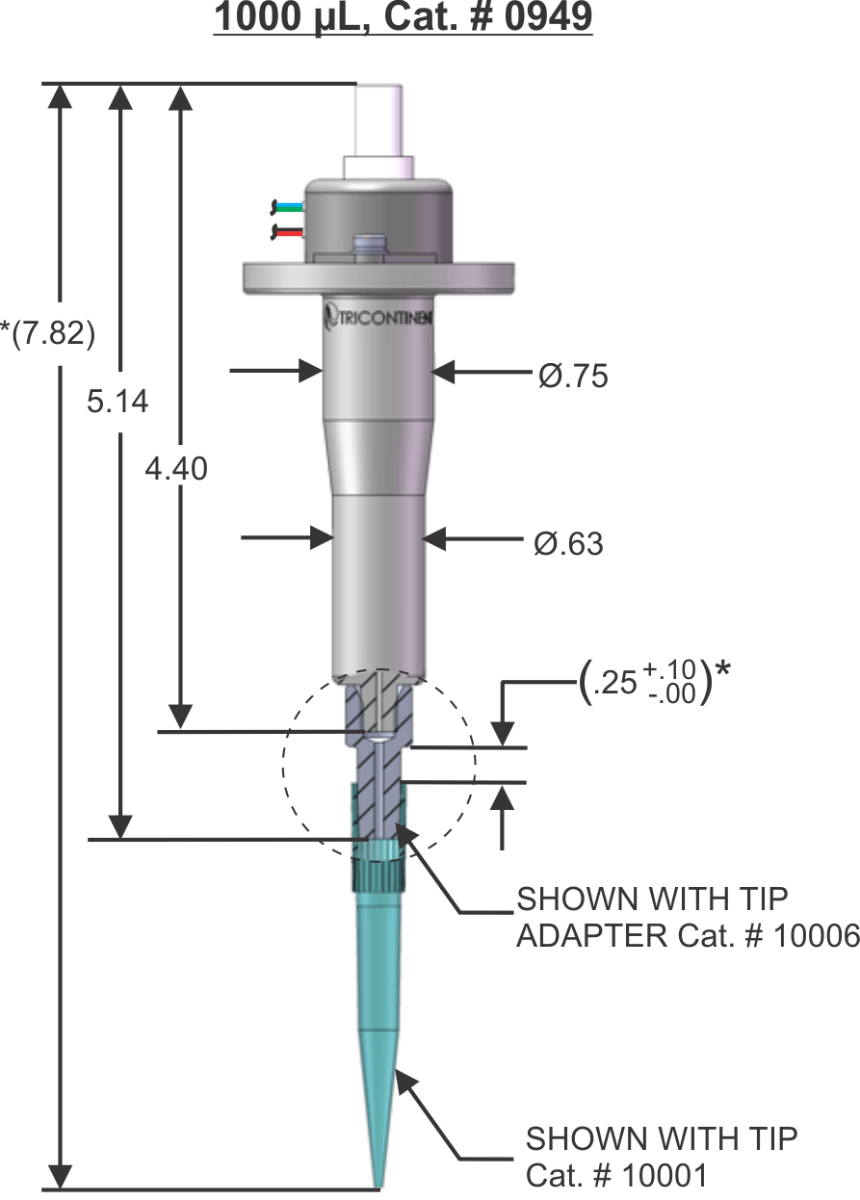

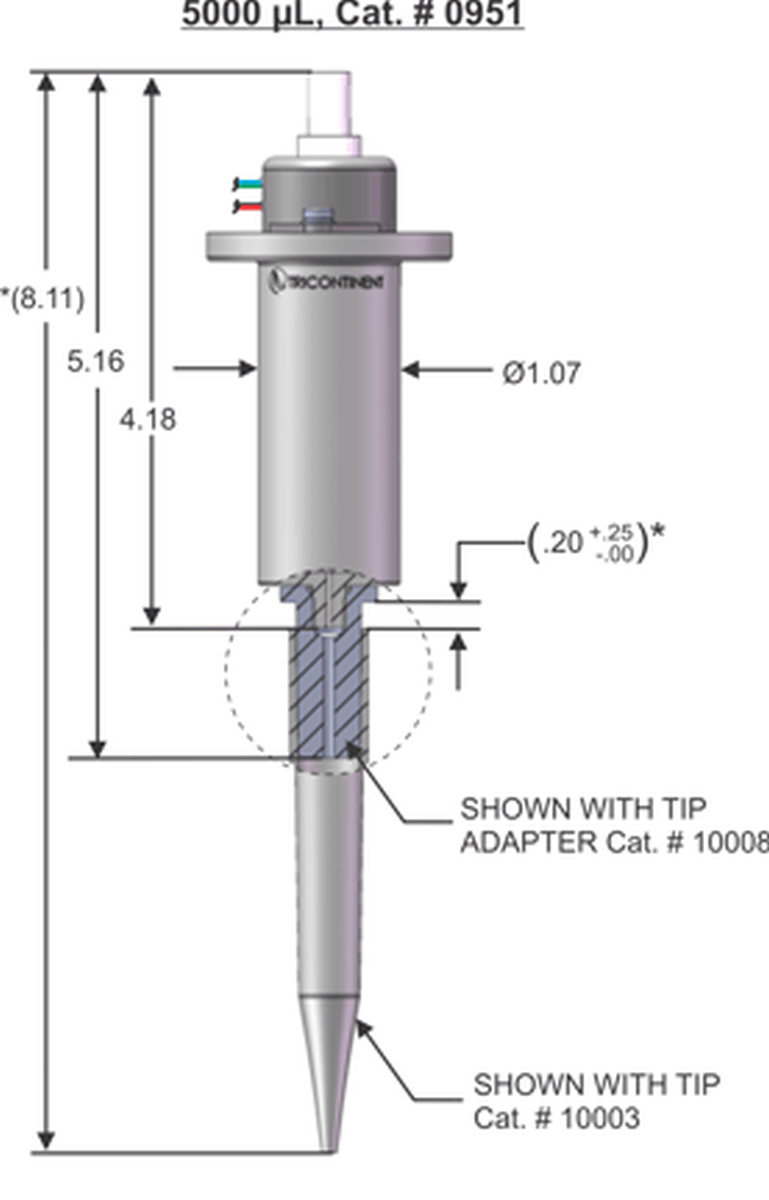

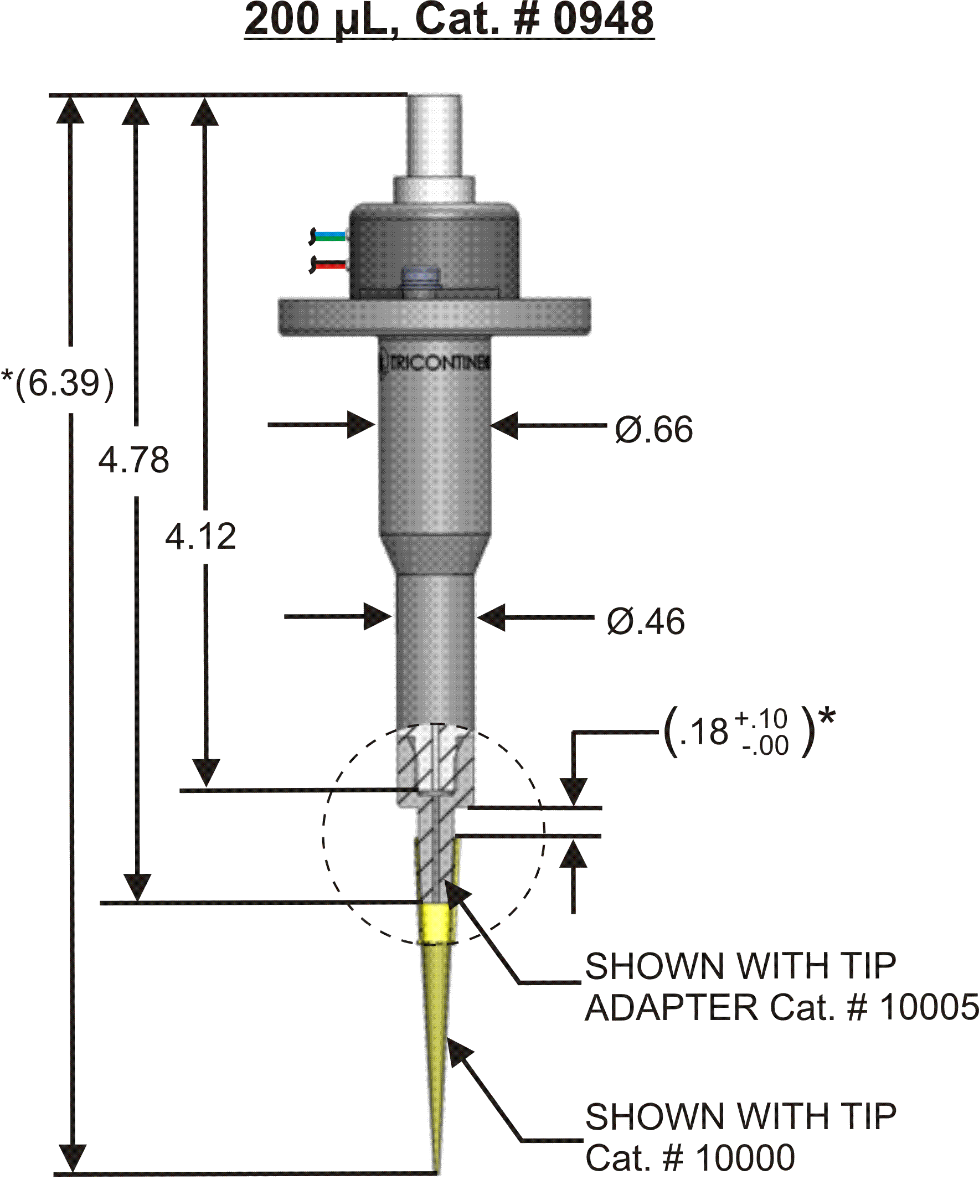

Note: Each tip is designed to seal within the reference gap dimensions shown. Customers should perform their own testing to determine optimum force/location for sealing and tip stripping.

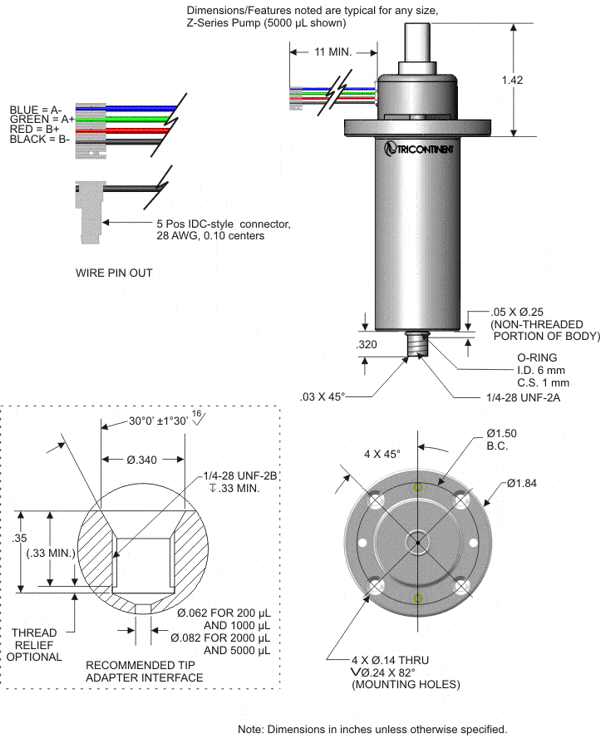

Dimensions/Features noted are typical for any size Z-Series pump (5000 µL shown)

Please contact your TriContinent Sales Representative for current pricing.

Z-Series Warranty Information

TriContinent operates an ISO 13485 registered manufacturing facility that delivers the highest quality products. Z-Series Pumps are general laboratory components not subject to FDA regulatory approval. TriContinent uses the highest quality components with applicable safety markings to meet the needs of system designers. Z-Series Pumps do not carry independent CE markings as they are components designed for use within larger systems which are subject to independent testing and certification.

We stand behind the Z-Series Pumps with a 1-year warranty. During the warranty period, should a Z-Series Pump fail, call us with an explanation of malfunction and TriContinent will issue a Return Material Authorization (RMA) number for repair or replacement at our discretion, at no charge.

It is the responsibility of the customer to determine the suitability of an application and the material compatibility of our product with your application.

When returning a product for repair or replacement, please contact TriContinent Customer Service to receive an RMA number. When calling please be sure to have the following information available:

• Catalog Number
• Serial Number
• Explanation of Malfunction

TriContinent will not accept the return of any product with out prior approval. TriContinent reserves the right to refuse a return of product that has been used with infectious microbiological or radioactive substances or any other materials that may be deemed hazardous.

The RMA number should be referenced on the outside of the shipping container when returning to TriContinent.

Warranty Exlusions

The above warranty shally not apply for defective products resulting from:

• Improper or Inadquate maintenance by the customer
• Unauthorized maintenance or service
• Customer misuse
• Operation outside of environmental specifications for the product
• Instruments returned without proper packagings

Note: For equipment damaged in shipping, please contact the shipper directly.
