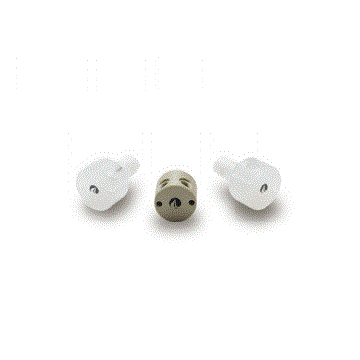

TriContinent has developed a superior and proprietary manufacturing process providing outstanding results with standard polymers such as PCTFE, PTFE, PEEK and UHMWPE. TriContinent rotary valves for OEM syringe pumps provide trouble-free performance well beyond previously established expectations. They have the added benefit of lower cost and, unlike some higher priced materials such as ceramic, they will never seize when exposed to crystallizing reagents. TriContinent rotary valves, provide zero-dead volume with unsurpassed accuracy and precision as well as exceptional longevity.

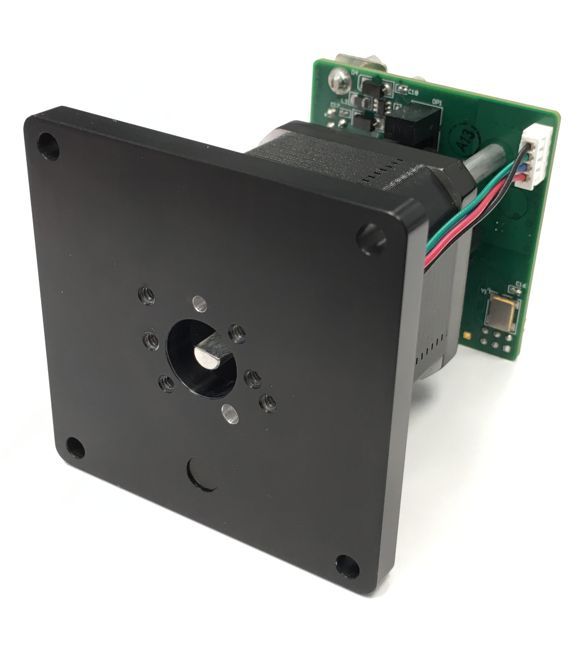

TriContinent syringe pump valves can also be used along with valve positioners within instruments for fluid selection and redirection. OEM configurations are also available.
Competitively priced with other rotary shear valve offerings, the TriContinent valves provide the better choice for instrument developers who have been required to choose between valves that either have a shorter life or expensive ceramic valves.
Competitive Advantages
| Description | Materials (Body/Plug) |
Catalog Number | Flow Path (Blue) |
| “Y” Valve 120° 3-port |
PEEK/UHMWPE PEEK/PTFE PCTFE/UHMWPE PCTFE/PTFE |
10020 10021 10022 10023 |
|
| 90° 4-port |
PEEK/UHMWPE PEEK/PTFE PCTFE/UHMWPE PCTFE/PTFE |
10040 10041 10042 10043 |
|
| Distribution 3-way |
PCTFE/UHMWPE PCTFE/PTFE |
10062 10063 |
|
| T 3-port | PEEK/UHMWPE | 10115 | |
| T 4-port | PEEK/UHMWPE | 10125 | |
| Loop | PCTFE/UHMWPE | 10126 | |

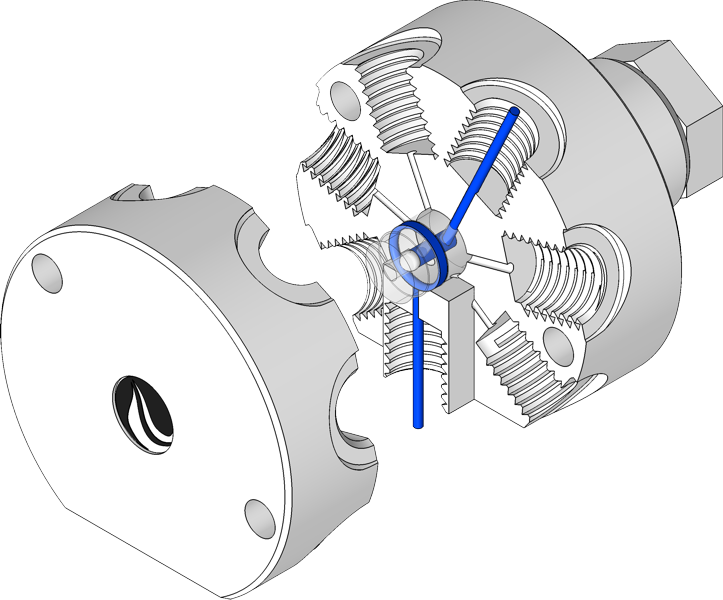

| Distribution 6-way |
PCTFE/UHMWPE PEEK/UHMWPE |
10106 10113 |

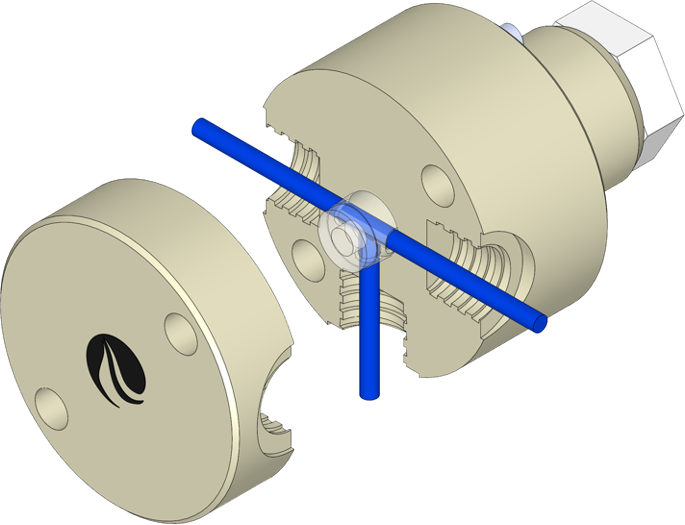

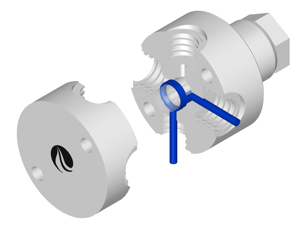

Note: Valve body shown sectioned for clairty
*C-Series Pump S/N 336945 or earlier may require firmware upgrade
** 6-way distribution valve is only compatible with C3000MP and C24000MP syringe pumps (Cat# 10095 and 10099).
