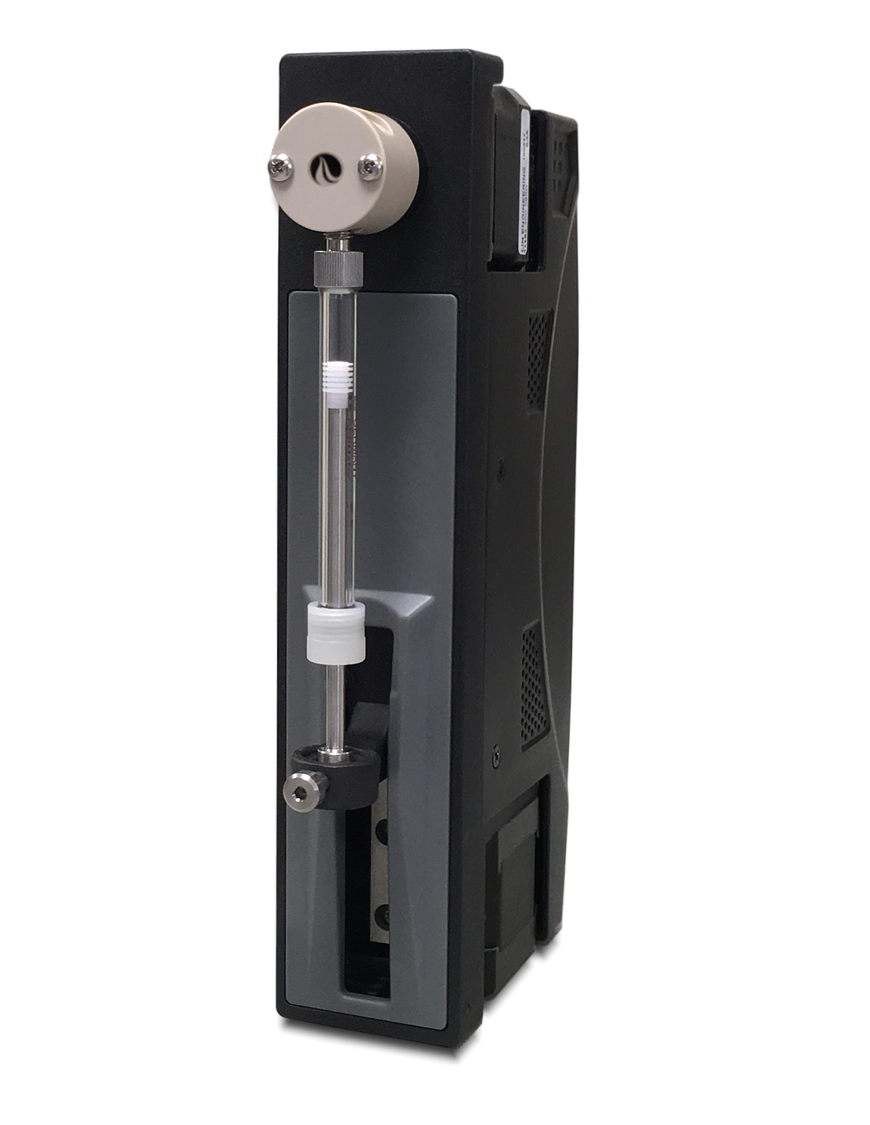

CX-Series Syringe Pumps
Syringe Pump

Superior Liquid Handling Performance

The CX6000 and CX48000 provide extremely high accuracy and precision for low volume dispensing, diluting and pipetting. It is also an ideal solution for applications that require low flow rates and low pulsation as it achieves a resolution of up to 384,000 micro steps/full stroke.

Thanks to their compact design and flexible configurations our pumps are used for liquid handling tasks across a wide range of applications such as Diagnostics, Next-Gen Sequencing, Flow Cytometry, Sample Preparation in general and many more.

Flexible Configuration & Customizable

We offer syringe sizes between 50 μL to 25 mL and different valve options with 3, 4 and 6-way for transferring liquids from and to multiple sources.

In case your instrument requires a customized solution we are also able to accommodate customer specific designs and configurations.

Long-Life

The CX-Series syringe pumps are highly robust and reliable as they utilize a proprietary high-efficiency, direct-drive design that does not use belts that can stretch or wear out. The robust drive mechanism has been life-tested and lasts several million cycles with no maintenance required throughout its life.

In addition, our rotary shear valves have been proven to last up to 24 times the life of competing valves.

Easy To Integrate

Our pumps are programmable and easy to integrate as they use the Cavro® protocol and hence can be used as a seamless replacement for industry standard pumps. They also utilize standard communication protocols (RS232, RS485 or CAN ) and mounting configurations used by other compact syringe pump designs, thereby eliminating expensive and time-consuming re-development.

**Requires valve adapter ring. Order number: 7809-37

CX6000/48000 Warranty Information

TriContinent operates an ISO 13485 registered manufacturing facility that delivers the highest quality products. The CX6000/48000 Pumps are general laboratory components not subject to FDA regulatory approval. TriContinent uses the highest quality components with applicable safety markings to meet the needs of system designers. The CX6000/48000 Pumps do not carry independent CE markings as they are components designed for use within larger systems which are subject to independent testing and certification.

We stand behind the CX6000/48000 Pumps with a 1-year warranty. During the warranty period, should a CX6000/48000 Pump fail, call us with an explanation of malfunction and TriContinent will issue a Return Material Authorization (RMA) number for repair or replacement at our discretion, at no charge.

TriContinent also guarantees its Valves to be free of defects in materials and workmanship for 1-year. Any valve, which fails due to such defects, will be repaired or replaced at our discretion at no charge provided the device is returned through our RMA process.

It is the responsibility of the customer to determine the suitability of an application and the material compatibility of our product with your application. When returning a product for repair or replacement, please contact TriContinent Customer Service to receive an RMA number. When calling please be sure to have the following information available:

• Catalog Number
• Serial Number
• Explanation of Malfunction

TriContinent will not accept the return of any product with out prior approval. TriContinent reserves the right to refuse a return of product that has been used with infectious microbiological or radioactive substances or any other materials that may be deemed hazardous.

The RMA number should be referenced on the outside of the shipping container when returning to TriContinent.

Warranty Exclusions

The above warranty shall not apply for defective products resulting from:

• Improper or Inadequate maintenance by the customer
• Unauthorized maintenance or service
• Customer misuse
• Operation outside of the environmental specifications for the product
• Instruments returned without proper packaging

There is no warranty expressed for the following products:

• Syringes
• Plungers

Note: For equipment damaged in shipping, please contact the shipper directly.
