C-Series Syringe Pumps

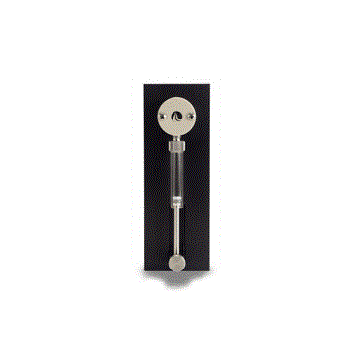

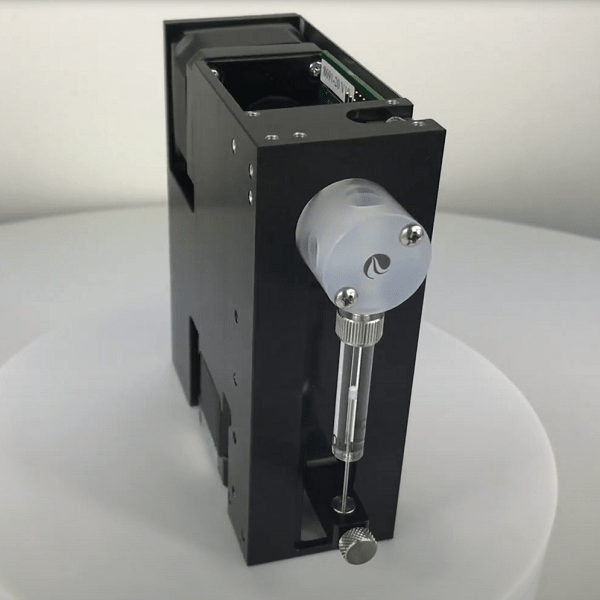

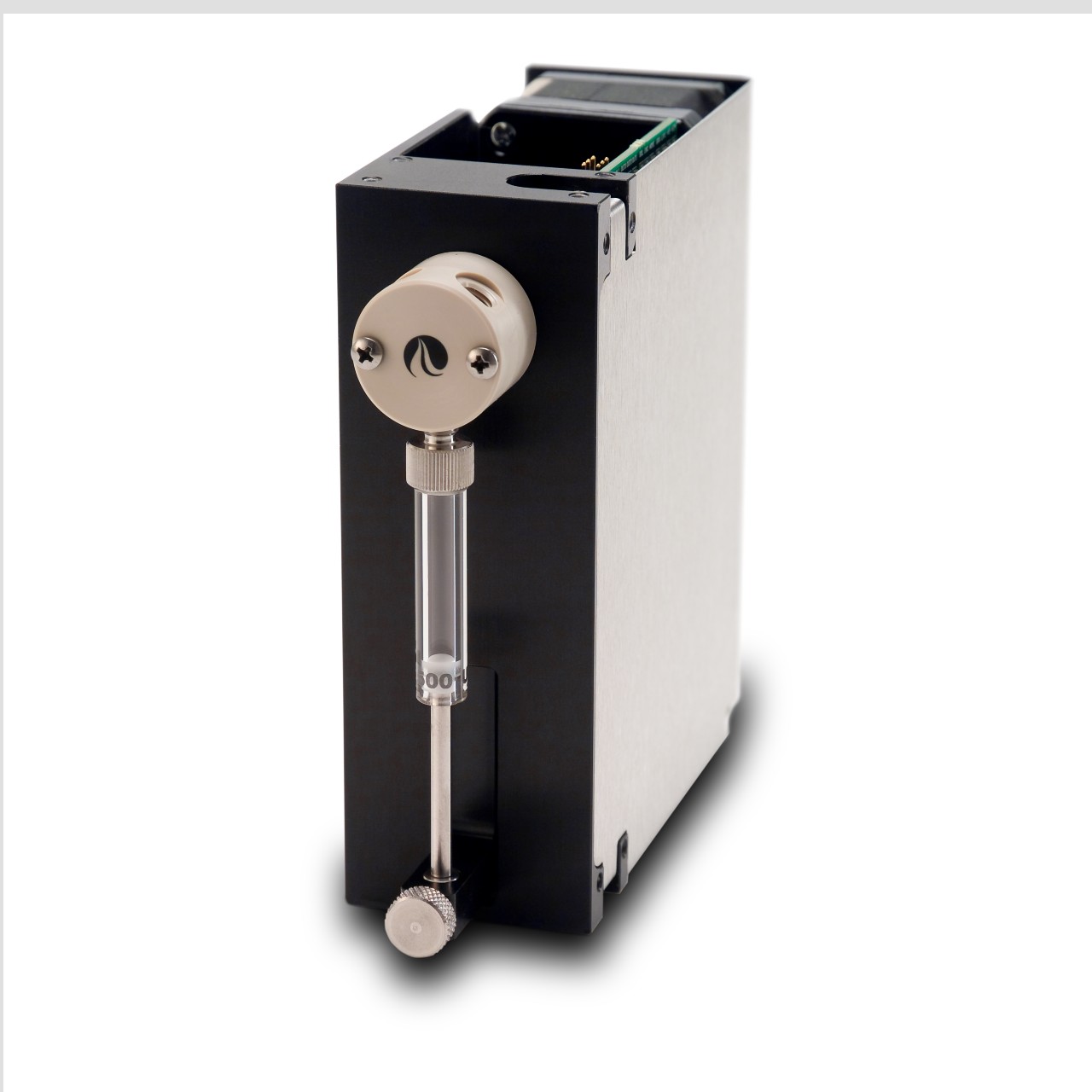

Syringe Pump

Syringe pump module designed for liquid handling in automated instrumentation
Extremely high dispense precision and accuracy
3cm stroke for syringe sizes from 50 μL to 12.5 mL
Designed for low flow, low pulsation applications
Different valve options (3, 4 or 6 way) to allow multi-source aspiration and dispensing (e.g. reagents)
Easy to integrate
Long life and highly reliable
Compact design
Flexible configurations and customizable

Request a Quote Request Service, Parts or Support

Description

Superior Liquid Handling Performance

The TriContinent C-Series Syringe Pump provides extremely high accuracy and precision for low volume dispensing, diluting and pipetting. It is also an ideal solution for applications that require low flow rates and low pulsation as it achieves a resolution of up to 192,000 micro steps/full stroke. Thanks to their compact design and flexible configurations our pumps are used for liquid handling tasks across a wide range of applications such as Diagnostics, Next-Gen Sequencing, Flow-Cytometry, Sample Preparation in general and many more.

Flexible Configuration

TriContinent offers syringe sizes between 50 μL to 12.5 mL and different valve options with 3,4 and 6 way for transferring liquids from and to multiple sources.

In case your instrument requires a customized solution we are also able to accommodate customer specific designs and configurations. Please download our case studies to read more about our cooperation with word-leading OEM customers.

Long-Life

The C-Series syringe pumps are highly robust and reliable as they utilize a proprietary high-efficiency, direct-drive design that does not use belts that can stretch or wear out. The robust drive mechanism has been life-tested and lasts several million cycles with no maintenance required throughout its life.

In addition, our rotary sheer valves showed in lifetime tests up to 24 times the life of competing valves.

Easy To Integrate

Our pumps are programmable and easy to integrate as they use the Cavro® protocol and hence can be used as a seamless replacement for industry standard pumps. They also utilize standard communication protocols and mounting configurations used by other compact syringe pump designs, thereby eliminating expensive and time-consuming re-development.

Competitive Advantages

A seamless replacement for industry standard pumps using the Cavro® protocol
High Resolution options available up to 192,000 steps/full-stroke
Proprietary high-efficiency and maintenance-free drive system
Direct-drive design (no belts to stretch or break)
Long-life rotary shear valves (up to 24 times the life of competing valves)
Syringe sizes from 50 μL to 12.5 mL

Liquid-handling products and instruments certificates rohs

See Frequently Asked Questions

Specifications

Technical Data

C3000

C3000MP

C24000

C24000MP

Stroke Speed

1.2 seconds to 100 minutes per stroke (800 minutes in microstep mode).

4.2 seconds to 800 minutes per stroke (3200 minutes in microstep mode).

Valve Options

120° 3-port, 90° 4-port, T-valve, 90° 3-way Distribution Rotary Plug PTFE or UHMWPE Body materials PEEK or PCTFE

6-way distribution valve PCTFE/UHMWPE PEEK/UHMWPE

120° 3-port, 90° 4-port, T-valve, 90° 3-way Distribution Rotary Plug PTFE or UHMWPE Body materials PEEK or PCTFE

6-way distribution valve PCTFE/UHMWPE PEEK/UHMWPE

Step Resolution

Standard mode 3,000 steps, Hi-Res mode 24,000 steps

Standard mode 24,000 steps, Hi-Res mode 192,000 steps

Drive Design

Direct drive stepper motor/leadscrew with 30 mm of travel.Manually moveable for ”power off” syringe removal.

Direct drive stepper motor/leadscrew with 30 mm of travel.

The below specifications apply to all C-Series models:

Fluid Contact Syringe Material

Borosilicate Glass and UHMWPE or PTFE (seal) - Pressures to 80 PSI

Fluid Contact Valve Material

PCTFE or PEEK (housing) and PTFE or UHMWPE (plug) - Pressures to 100 PSI

Accessories Syringe Sizes

50 μL, 100 μL, 250 μL, 500 μL, 1 mL, 2.5 mL, 5 mL, 12.5 mL

Interface Type

RS232, RS485 or CAN

Communication Rates

RS232/RS485 9600 or 38400 CAN - 100K, 125K, 250K, 500K, 1M bps

Format (RS232/RS485)

Data Bits - 8, Parity - None, Stop Bit - 1 Half Duplex, Data Terminal and OEM protocols

Operating Temperature and Humidity

15°C to 40°C (59°F to 104°F) and 20% to 95% RH at 40°C (104°F)

Non-Operating Temperature and Humidity

-20°C to 65°C (-4°F to 149°F) and 30% to 85% RH, non-condensing

Media Temperature

15°C to 40°C (59°F to 104°F)

Imprecision (full stroke) at 50 μL to 100 μL

< 0.1% CV

Imprecision (full stroke) at 250 μL to 12.5 mL

< 0.05% CV

Inaccuracy (full stroke)

< 1% syringe volume

Power Requirement

24 VDC +10%

Power Rating

< 1.5 Amp (peak)

Dimensions

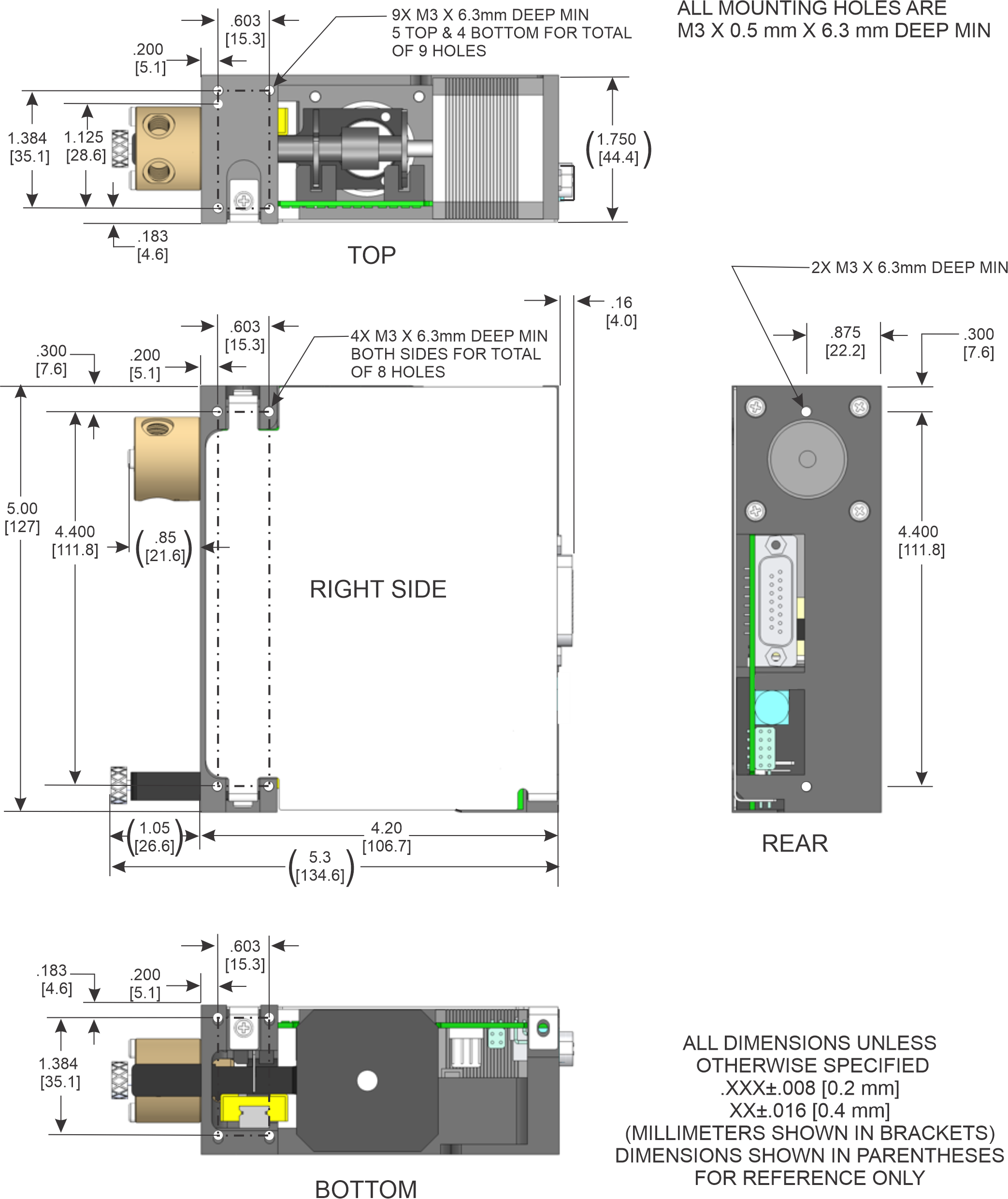

C-SERIES PUMP INTERFACE DETAILS

C-SERIES WITH MULTIPORT VALVE INTERFACE DETAILS

ALL MOUNTING HOLES ARE M3 X 0.5mm X 6.3 mm DEEP MINIMUM

ALL DIMENSIONS UNLESS OTHERWISE SPECIFIED ARE .XXX + .008 [.02 mm]

Ordering Information

C3000 Pumps

Catalog #

Description

10010

C3000 with 120° 3-port Valve (PEEK/UHMWPE)

10011

C3000 with 120° 3-port Valve (PEEK/PTFE)

10012

C3000 with 120° 3-port Valve (PCTFE/UHMWPE)

10013

C3000 with 120° 3-port Valve (PCTFE/PTFE)

10030

C3000 with 90° 4-port Valve (PEEK/UHMWPE)

10031

C3000 with 90° 4-port Valve (PEEK/PTFE)

10032

C3000 with 90° 4-port Valve (PCTFE/UHMWPE)

10033

C3000 with 90° 4-port Valve (PCTFE/PTFE)

10052

C3000 with Distribution 4-port Valve (PCTFE/UHMWPE)

10053

C3000 with Distribution 4-port Valve (PCTFE/PTFE)

10110

C3000 with T 3-Port Valve (PEEK/UHMWPE)

10120

C3000 with T 4-Port Valve (PEEK/UHMWPE)

10095

C3000MP with 6-way Distribution Valve (PCTFE/UHMWPE)

10114

C3000MP with 6-way Distribution Valve (PEEK/UHMWPE)

C24000 Pumps

Catalog #

Description

10018

C24000 with 120° 3-port Valve (PEEK/UHMWPE)

10019

C24000 with 120° 3-port Valve (PCTFE/UHMWPE)

10028

C24000 with 120° 3-port Valve (PEEK/PTFE)

10029

C24000 with 120° 3-port Valve (PCTFE/PTFE)

10038

C24000 with 90° 4-port Valve (PEEK/UHMWPE)

10039

C24000 with 90° 4-port Valve (PCTFE/UHMWPE)

10048

C24000 with 90° 4-port Valve (PEEK/PTFE)

10049

C24000 with 90° 4-port Valve (PCTFE/PTFE)

10059

C24000 with Distribution 4-port Valve (PCTFE/UHMWPE)

10069

C24000 with Distribution 4-port Valve (PCTFE/PTFE)

10099

C24000MP with 6-way Distribution Valve (PCTFE/UHMWPE)

10118

C24000MP with 6-way Distribution Valve (PEEK/UHMWPE)

Replacement Valves

Catalog #

Description

10020

120° 3-port, ¼ - 28 (PEEK/UHMWPE)

10021

120° 3-port, ¼ - 28 (PEEK/PTFE)

10022

120° 3-port, ¼ - 28 (PCTFE/UHMWPE)

10023

120° 3-port, ¼ - 28 (PCTFE/PTFE)

10040

90° 4-port, ¼ - 28 (PEEK/UHMWPE)

10041

90° 4-port, ¼ - 28 (PEEK/PTFE)

10042

90° 4-port, ¼ - 28 (PCTFE/UHMWPE)

10043

90° 4-port, ¼ - 28 (PCTFE/PTFE)

10062

Distribution 4-port, ¼ - 28 (PCTFE/UHMWPE)

10063

Distribution 4-port, ¼ - 28 (PCTFE/PTFE)

10115

T 3-Port, ¼ - 28 (PEEK/UHMWPE)

10125

T 4-Port, ¼ - 28 (PEEK/UHMWPE)

10106**

Distribution 6-way (PCTFE/UHMWPE)

10113

Distribution 6-way Distribution Valve (PEEK/UHMWPE)

** 6-way distribution valve is only compatible with C3000MP and C24000MP syringe pumps (Cat# 10095 & 10099).

Syringes - 3 cm stroke (XP Style)

Catalog #

Description

10470

50 μL (UHMWPE)

10471

100 μL (UHMWPE)

10472

250 μL (UHMWPE)

10473

500 μL (UHMWPE)

10474

1 mL (UHMWPE)

10475

2.5 mL (UHMWPE)

10476

5 mL (UHMWPE)

10480

50 μL (PTFE)

10481

100 μL (PTFE)

10482

250 μL (PTFE)

10483

500 μL (PTFE)

10484

1 mL (PTFE)

10485

2.5 mL (PTFE)

10486

5 mL (PTFE)

10488

12.5 mL (PTFE)

Accessories

Catalog #

Description

10151

C-Series Evaluation Kit for use with all C-Series Pumps

Includes: Power Supply, Tubing Kit, USB Converter/Cable Assembly and Quick Start Guide.

10171

Cable, RS232 to pump

10176

Evaluation Cable, RS232 and Bench to One C/MC-Series Device

10177

Evaluation Cable, USB to One C/MC-Series Device

10178

Evaluation Cable, XYZ to One C/MC-Series Device

10179

Cable, Daisy Chain Jumper

8152-09

Universal Power Supply

8246-71

Cable, Interface Converter to Pump

8698-02

USB/RS485 Converter

8698-03

Cable, USB-A/USB-B, 2-meter

Downloads

C-SERIES ROTARY VALVE DATASHEET

C-SERIES SYRINGE PUMPS W/MULTIPORT DATASHEET

C-Series Syringe Pump Datasheet

C-Series Replacement Syringe Datasheet

C-Series Product Manual

Syringe Pump eDrawings

C-Series Syringe Pump with 3-port Valve Model

C-Series Syringe Pump with 4-port Valve Model

Syringe Pump with 6-way Valve Model

Warranty

C-Series Warranty Information

TriContinent operates an ISO 13485 registered manufacturing facility that delivers the highest quality products. C-Series Pumps are general laboratory components not subject to FDA regulatory approval. TriContinent uses the highest quality components with applicable safety markings to meet the needs of system designers. C-Series Pumps do not carry independent CE markings as they are components designed for use within larger systems which are subject to independent testing and certification.

We stand behind the C-Series Pumps with a 1-year warranty. During the warranty period, should a C-Series Pump fail, call us with an explanation of malfunction and TriContinent will issue a Return Material Authorization (RMA) number for repair or replacement at our discretion, at no charge.

TriContinent also guarantees its Valves to be free of defects in materials and workmanship for 1-year. Any valve, which fails due to such defects, will be repaired or replaced at our dscretion at no charge provided the device is returned through our RMA process.

It is the responsibility of the customer to determine the suitability of an application and the material compatibility of our product with your application.When returning a product for repair or replacement, please contact TriContinent Customer Service to receive an RMA number. When calling please be sure to have the following information available:

Catalog Number
Serial Number
Explanation of Malfunction

TriContinent will not accept the return of any product with out prior approval. TriContinent reserves the right to refuse a return of product that has been used with infectious microbiological or radioactive substances or any other materials that may be deemed hazardous.

The RMA number should be referenced on the outside of the shipping container when returning to TriContinent.

Warranty Exclusions

The above warranty shall not apply for defective products resulting from:
