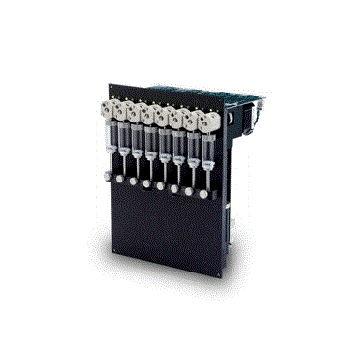

Multichannel syringe pump front
Multichannel syringe pump back
Multichannel syringe pump front
Multichannel syringe pump side
Multichannel syringe pump front
Multichannel syringe pump back
Multichannel syringe pump front
Multichannel syringe pump side
Back to the product list

MC-Series Syringe Pump
Multi-Channel Syringe Pump

The TriContinent MC6000 is a multi-channel syringe pump designed for multiple probe liquid handling applications. This pump introduces an industry exclusive feature of rotary shear valves for optimum liquid handling performance. Our long-life valves were specifically designed and manufactured by TriContinent for multi-channel syringe pump applications to completely eliminate inherent performance limitations (clogging, pumping and leaking) associated with solenoid valves.

Contact Us
Request a Quote Request Service, Parts or Support
Share

Description

Competitive Advantages

  • Long-life rotary shear valves (no solenoid valve limitations)
  • Integrated bypass capability
  • Full quadrature encoder for absolute syringe positioning
  • Available in 4, 6 or 8 channel syringe configurations
  • Full stroke resolutions from 6000 to 48000 steps

Liquid-handling products and instruments certificates rohs

Specifications



SPECIFICATIONS



Drive Design
Stepper motor/leadscrew with 30 mm travel.
Stroke Speed
1.2 seconds to 100 minutes per stroke
(800 minutes in microstep mode).
Step Resolution
Standard mode 6,000 steps.
Hi-Res mode 48,000 steps.
Syringe Design
30 mm stroke glass syringe with 1/4-28 fitting
PTFE seals (long life UHMWPE seals available upon request)
Fluid Contact Materials
Syringe - Borosilicate glass (seal) PTFE or UHMWPE
3P Valve - PEEK (body) and UHMWPE (rotary plug)
3W Dist Valve - PCTFE (body) and UHMWPE (rotary plug)

FUNCTIONAL PARAMETERS



Imprecision (full stroke) at 50 μL to 100 μL
< 0.1% CV
Imprecision (full stroke) at 250 μL to 12.5 mL
< 0.05% CV
Innaccuracy (full stroke)
< 1% syringe volume
Power Requirement
24 VDC + 10%
Power Rating
< 1.5 Amp (peak)



Interface Type
USB, RS232, RS485 or CAN
Communication Rates
RS232/RS485 9600 or 38400 baud CAN 100K, 125 K, 250 K, 500 K, 1 M baud
Format (RS232/RS485)
Data Bits - 8, Parity - None, Stop Bit - 1 Half Duplex, Data Terminal and OEM protocols
Operating Temperature and Humidity
15°C to 40°C (59°F to 104°F) and 20% to 95% RH at 40°C (104°F)
Non-Operating Temperature and Humidity
-20°C to 65°C (-4°F to 149°F) and 30% to 85% RH non condensing
Media Temperature

Dimensions

Envelope and Mounting Drawings

Envelope and Mounting Drawings

product diagram

No. of Channels
Width
X-Mounting
4
5.12 in. [130 mm]
4.74 in. [120.4 mm]
6
6.43 in. [163.3 mm]
6.03in. [153.2 mm]
8
7.72 in. [196 mm]
7.32 in. [186 mm]



Note: Dimensions in inches [mm] unless otherwise specified.

Note: Dimensions in inches [mm] unless otherwise specified.

Ordering Information

MC6000 Pump



Catalog #
Description
10154
8-Channel with 120° 3-port Valve PEEK/UHMWPE
10155
6-Channel with 120° 3-port Valve PEEK/UHMWPE
10156
4-Channel with 120° 3-port Valve PEEK/UHMWPE
10304
8-Channel with 4-port Valve PCTFE/UHMWPE
10305
6-Channel with 4-port Valve PCTFE/UHMWPE
10306
4-Channel with 4-port Valve PCTFE/UHMWPE

Valve



Catalog #
Description
10153
120° 3-port, ¼ - 28, PEEK/UHMWPE
10160
4-port Distribution Valve, PCTFE/UHMWPE

Syringes*



Catalog #
Description
10480
50 μL PTFE
10481
100 μL PTFE
10482
250 μL PTFE
10483
500 μL PTFE
10484
1 mL PTFE
10485
2.5 mL PTFE
10486
5 mL PTFE

*Long-life UHMWPE seals available upon request

Accessories



Catalog #
Description
10171
Cable, RS232 to Pump
8246-71
Cable, Interface Converter to Pump

Downloads

mc6000-syringe-pump-datasheet

MC6000 Syringe Pump Datasheet

mc6000-syringe-pump-replacement-syringe-datasheet

MC6000 Syringe Pump Replacement Syringe Datasheet

mc6000-syringe-pump-replacement-valve-datasheet

MC6000 Syringe Pump Replacement Valve Datasheet

MC6000 Syringe Pump Manual

MC6000 SYRINGE PUMP MANUAL

MOD91014

MC6000-8 SYRINGE PUMP MODEL

MC6000-6 Syringe Pump Model

MC6000-6 Syringe Pump Model

MC6000-4 Syringe Pump Model

MC6000-4 Syringe Pump Model

Warranty

MC-Series Warranty Information

TriContinent operates an ISO 13485 registered manufacturing facility that delivers the highest quality products. MC-Series Pumps are general laboratory components not subject to FDA regulatory approval. TriContinent uses the highest quality components with applicable safety markings to meet the needs of system designers. MC-Series Pumps do not carry independent CE markings as they are components designed for use within larger systems which are subject to independent testing and certification.

We stand behind the MC-Series Pumps with a 1-year warranty. During the warranty period, should a MC-Series Pump fail, call us with an explanation of malfunction and TriContinent will issue a Return Material Authorization (RMA) number for repair or replacement at our discretion, at no charge.

It is the responsibility of the customer to determine the suitability of an application and the material compatibility of our product with your application.When returning a product for repair or replacement, please contact TriContinent Customer Service to receive an RMA number. When calling please be sure to have the following information available:

  • Catalog Number
  • Serial Number
  • Explanation of Malfunction

TriContinent will not accept the return of any product with out prior approval. TriContinent reserves the right to refuse a return of product that has been used with infectious microbiological or radioactive substances or any other materials that may be deemed hazardous.

The RMA number should be referenced on the outside of the shipping container when returning to TriContinent.

Warranty Exclusions

The above warranty shall not apply for defective products resulting from:

  • Improper or Inadequate maintenance by the customer
  • Unauthorized maintnenace or service
  • Customer misuse
  • Operation outside of the environmental specifications for the product
  • Instruments returned without proper packaing

There is no warranty expressed for the following components:

  • Syringes
  • Plungers

Note: For equipment damaged in shipping, please contact the shipper directly.
